High Sensitive Digital-Bipolar Hall Effect Sensor
High chopping frequency、Ultra-high sensitivity、Solid-state reliability
The SC2402 is a Hall-effect latch designed in mixed signal BiCMOS technology. The device integrates a voltage regulator, Hall sensor with dynamic offset cancellation system, Schmitt trigger and an open-drain output driver, all in a single package.
SC2402_EN.pdf
Characteristics and advantages
Ultra-high sensitivity
High chopping frequency
Supports a wide voltage range: 2.5~18V
Wide operating temperature range: -40~125℃
Solid-state reliability
Small package :3-pin TO-92S (UA) 、3-pin SOT23-3L (SO) 、6-pin DFN1616 -(DN)
Ordering Information
| Ordering Information | Mark | Option | Ambient, TA(℃) | Package | Packing | Quantity |
|---|---|---|---|---|---|---|
| SC2402DN-TR | 2402 | - | -40~125 | DFN1616 | Reel | 3000/reel |
| SC2402SO-N-TR | 2402 | N | -40~125 | SOT23-3L | Reel | 3000/reel |
| SC2402UA-BK | 2402 | - | -40~125 | TO-92S | Bulk | 1000/bag |

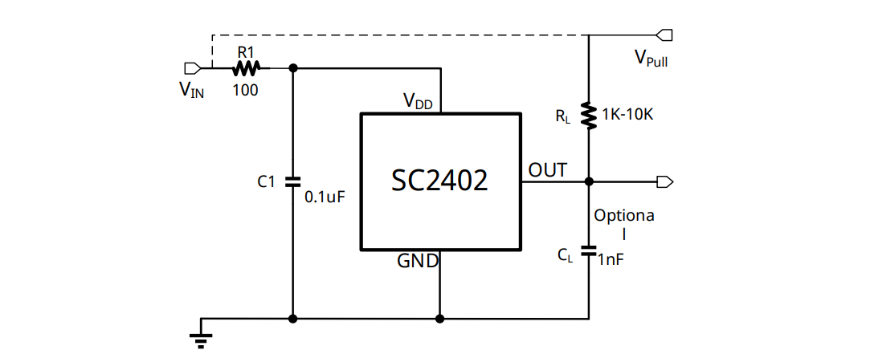

Product Application
Three-phase Motor Commutation
Single-phase Motor Commutation
Refrigerator Fan Motor
BLDC Commutation
BLDC Commutation
Water Pump
Desk Lift Motor
The SC2402 is a Hall-effect latch designed in mixed signal BiCMOS technology. The device integrates a voltage regulator, Hall sensor with dynamic offset cancellation system, Schmitt trigger and an open-drain output driver, all in a single package.
