PWM Protocol Two-Wire Differential Speed Sensor IC
Based on Hall technology, suitable for wheel speed detection in ABS control systems and iTPMS systems.
SC9683T2 is an integrated active magnetic sensor based on Hall technology, suitable for wheel speed detection in ABS control systems and iTPMS systems. Its basic function is to measure the speed and direction of magnetic wheels or ferromagnetic gears.
SC9683T2_EN.pdf
Characteristics and advantages
AEC-Q100 Grade0 qualified
IS026262 ASIL-B qualified
Two-wire current interface
measures speed and direction
PWM Protocol Output
Fixed and Adaptive Hysteresis Types
Supports Vibration Suppression
South and North Pole Back Magnet Supported
-40℃ to 150℃ operating temperature range
Single-Chip solution，PCB_Less
Package：TS-2A
Ordering Information
| Ordering Information | Marking | Option | Ambient, TA(℃) | Package | Packing | Quantity |
|---|---|---|---|---|---|---|
| SC9682TS-TR-Q | 9682 | Square | -40 ~ 150 | TS-2 | Tape & reel | 1500pcs/reel |
| SC9683TS-TR-Q | 9683 | PWM | -40 ~ 150 | TS-2 | Tape & reel | 1500pcs/reel |
| SC9683T2-TR-Q | 9683 | PWM | -40 ~ 150 | TS-2A | Tape & reel | 1500pcs/reel |
| SC9684TS-TR-Q | 9684 | AK | -40 ~ 150 | TS-2 | Tape & reel | 1500pcs/reel |
| SC9684T2-TR-Q | 9684 | AK | -40 ~ 150 | TS-2A | Tape & reel | 1500pcs/reel |

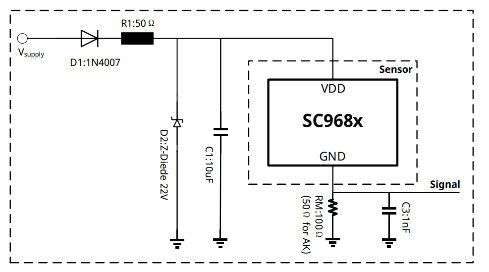

Product Application
Wheel Speed
ABS Wheel Speed Sensor
ABS System
SC9683T2 is an integrated active magnetic sensor based on Hall technology, suitable for wheel speed detection in ABS control systems and iTPMS systems. Its basic function is to measure the speed and direction of magnetic wheels or ferromagnetic gears.
