SC69411DC

SC69411DC

Programmable High-Precision Magnetic Angle Sensor IC

AEC-Q100, ISO 26262 ASIL-B, Programmable, Single-channel

SC69411 is a differential Hall effect-based angular position sensor chip released by Semiment Technology. The chip integrates a fully differential Hall sensing matrix at the core, which detects corresponding sine and cosine position signals from an overhead S/N pole pair magnet. After being amplified by the preamplifier, the signals are sampled by the internal analog-to-digital conversion circuit.

Data Table SC69411_EN.pdf
Characteristics and advantages Ordering Information Product Application Documents and Resources

Characteristics and advantages

AEC-Q100 Grade0 qualified

ISO26262 ASILB qualified

High-precision non-contact absolute rotary angle position detection

Simple magnetic circuit design

Wide operating temperature range: -40 ℃ to 150 ℃

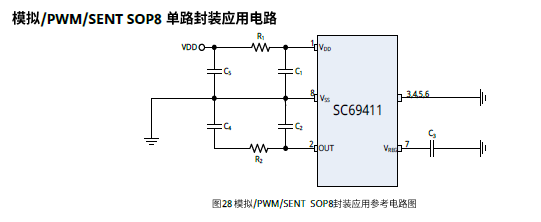

Selectable output modes: analog output, PWM output, SAE J2716 compliant SENT output, 2-wire current-mode PSI5 (V2.3) output

Programmable angle measurement range (up to 360°)

Programmable linear transfer characteristics (custom 4-point / 8-point, or optional 16-segment / 32-segment equally spaced curves)

32-bit programmable user ID

Differential Hall sensing for stray magnetic field immunity

Rich on-chip diagnostic functions

Ordering Information

Ordering Information Marking Option Grade Ambient,TA(℃) Package Packing Quantity
SC69411DC-000-TR-Q 69411 Analog Q -40~150 SOP8 Tape&Reel 4000pcs/reel
SC69411DC-PSI-TR-Q 69411 PSI Q -40~150 SOP8 Tape&Reel 4000pcs/reel
SC69411DA-000-TR-Q 69411 Analog Q -40~150 SOP8(D) Tape&Reel 4000pcs/reel
SC69411TG-000-TR-Q 69411 Analog Q -40~150 TSSOP16 Tape&Reel 3000pcs/reel
SC69411S3-000-TR-Q 69411 Analog Q -40~150 SIP3 Tape&Reel 2600pcs/reel
SC69411S3-PSI-TR-Q 69411 PSI Q -40~150 SIP3 Tape&Reel 2600pcs/reel

Product Application

Electronic Accelerator Pedal

Body Height Sensor

EGR Valve

Gear Shifter / TPMS Receiver / BCM / Window & Door

Documents and Resources

Semiment Product Selection Guide V1-25Q4.pdf

Selection Guide Download
2025-12-9

SC69411_EN.pdf

Datesheet Download
2026-4-2
