Ultra-Low Power Omnipolar Switch Hall Effect Sensor
High sensitivity、ultra-low power consumption
The SC2061/2 family produced with advanced CMOS technology family is a Ultra-low power Omnipolar switch Hall Effect Sensor designed for the most compact and battery supply systems.
SC2062_EN.pdf
Characteristics and advantages
Ultra-Low Power Omni polar Switch Hall Effect Sensor
Industry ultra-low power consumption 2.5 µA at 2.8V supply voltage
2.2 to 5.5V operating range
Extremely high sensitivity

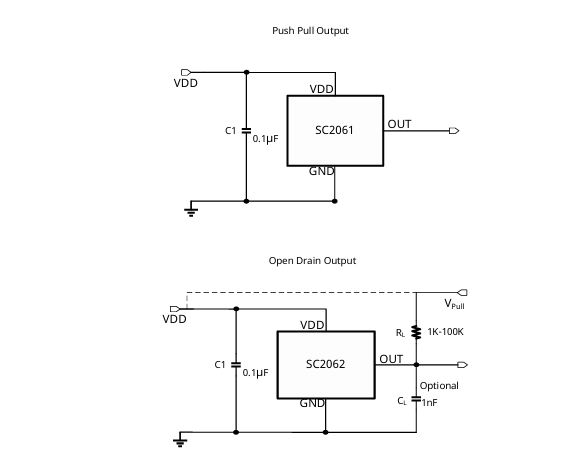

Push-Pull and Open-Drain output options
-40°C to 85°C operating temperature range
Small package : 3-pin TO-92S (UA) 、3-pin SOT23-3L (SO)
Ordering Information
| Ordering Information | Marking | Options | Ambient, (℃) | Package | Packing | Quantity |
|---|---|---|---|---|---|---|
| SC2061SO-TR | 2061 | Push-Pull | -40~85 | SOT23-3L | TR | 3000/reel |
| SC2061UA-BK | 2061 | Push-Pull | -40~85 | TO-92S | BK | 1000/bag |
| SC2062SO-TR | 2062 | Open-Drain | -40~85 | SOT23-3L | TR | 3000/reel |
| SC2062UA-BK | 2062 | Open-Drain | -40~85 | TO-92S | BK | 1000/bag |
Product Application
Electric Toy
TWS
Liquid Level Detection
Water Meter Flow Sensor
Valve
Electronic Steering Column Lock
The SC2061/2 family produced with advanced CMOS technology family is a Ultra-low power Omnipolar switch Hall Effect Sensor designed for the most compact and battery supply systems.
