High-voltage latched planar magnetic sensing Hall effect sensor
AEC-Q100、High EMC immunity、Solid-state reliability
The SC2498T is a planar magnetic sensing Hall - effect latch designed with BCD process technology. It supports an operating voltage range from 2.8V to 40V. The device integrates a voltage regulator, a Hall sensor with a dynamic offset cancellation system, a Schmitt trigger, and an open - drain output driver in a single package.
SC2498T-Q_EN.pdf
Characteristics and advantages
Automotive AEC-Q100 Qualified
ISO26262 ASIL A
Planar magnetic sensing-effect ICs
Supports a wide voltage range: - 2.8V to 40V
Wide operating temperature range: - -40℃ to 150℃
Current limited open drain output: 40mA
Reverse battery protection: -28V
Output short-circuits and overvoltage protection
High EMC immunity
Symmetrical latch switch-points
Solid-state reliability
Small package: 3-pin SOT23-3L (SO)
Ordering Information
| Ordering Information | Marking | BOP(Gs) | BRP(Gs) | Ambient, (℃) | Package | Packing | Quantity |
|---|---|---|---|---|---|---|---|
| SC2498TSO-TR-Q | 2498T | 30 | -30 | -40~150 | SOT23-3L | Reel | 3000/reel |

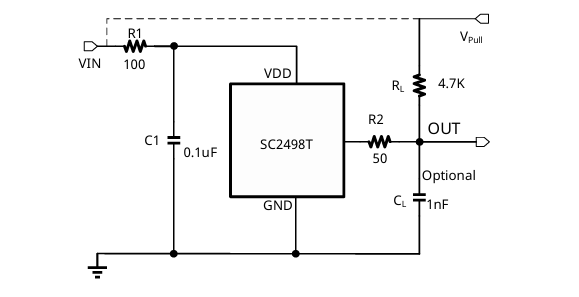

Product Application
Seat Motor
Motor System
Electric Power Steering (EPS)
Smart Wiper Controller
Sliding Door Motor
Door System
The SC2498T is a planar magnetic sensing Hall - effect latch designed with BCD process technology. It supports an operating voltage range from 2.8V to 40V. The device integrates a voltage regulator, a Hall sensor with a dynamic offset cancellation system, a Schmitt trigger, and an open - drain output driver in a single package.
