Programmable True Power-On State Speed Sensor IC
Higher accuracy, zero-speed operation, customizable output polarity
SC9675T3 is the first-generation product in Saizhuo's True Power-On State (TPOS) sensor IC series. Compared with previous models, it delivers higher accuracy and supports zero-speed operation. Output polarity is customizable for specific applications.
SC9675T3_CN.pdf
Characteristics and advantages
AEC-Q100 Grade 0 certified
Specifically designed for automotive camshaft sensors
True power-on state detection
Zero-speed detection
Chopper function reduces offset drift
Digital output polarity (tooth level) selectable
Fast transition from calibration to operating mode
Automatic Gain Control (AGC) during calibration eliminates air gap variation effects
High accuracy over full temperature range
Minimum operating voltage: 3.3V
Package: TS-3
Ordering Information
| Ordering Information | Marking | Class | Ambient, TA(℃) | Package | Packing | Quantity |
|---|---|---|---|---|---|---|
| SC9675T3-TR-Q | 9675 | Q | -40 ~ 150 | TS-3 | Tape & reel | 1500 /reel |

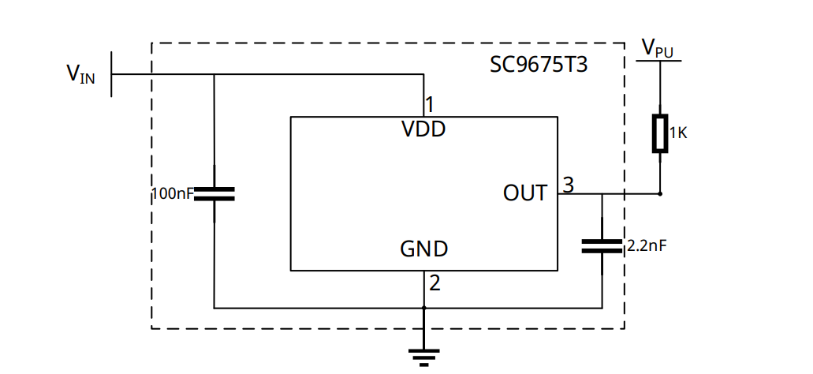

Product Application
Camshaft Phase Sensor
SC9675T3 is the first-generation product in Saizhuo's True Power-On State (TPOS) sensor IC series. Compared with previous models, it delivers higher accuracy and supports zero-speed operation. Output polarity is customizable for specific applications.
